GSR 15V_GSR15V
作者：THK导轨 发布时间：2017-07-18

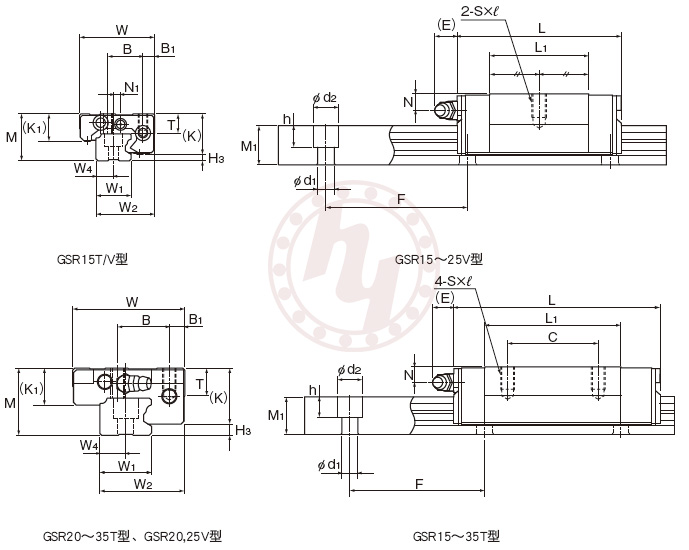

| 外形尺寸 | M | 20 | mm |
| W | 32 | mm | |
| L | 47.1 | mm | |
| 滑块尺寸 | B1 | 5 | mm |
| B | 15 | mm | |
| C | - | mm | |
| Sxl | M4x7 | mm | |
| H | mm | ||
| L1 | 27.5 | mm | |
| T | 8.25 | mm | |
| K | 16.8 | mm | |
| K1 | 12 | mm | |
| N | 4.5 | mm | |
| N1 | 3 | mm | |
| E | 5.5 | mm | |
| 油嘴 | PB107 | mm | |
| H3 | H3 | 3.2 | mm |
| 导轨尺寸 | W1 | 15 | mm |
| W2 | 25 | mm | |
| W4 | 7.5 | mm | |
| M1 | 11.5 | mm | |
| F | 60 | mm | |
| d1xd2xh | 4.5x7.5x5.3 | mm | |
| Max | 2000 | mm | |
| 基本额定载荷 | C | 4.31 | kN |
| C0 | 5.59 | kN | |
| 静态容许力矩 | Ma单 | 0.0252 | kN*m |
| Ma双 | 0.158 | kN*m | |
| Mb单 | 0.0218 | kN*m | |
| Mb双 | 0.136 | kN*m | |
| 重量 | 滑块 | 0.08 | kg |
| 导轨 | 1.2 | kg/m | |
 | |||
