HR 918M_HR918M
作者：THK导轨 发布时间：2017-07-18

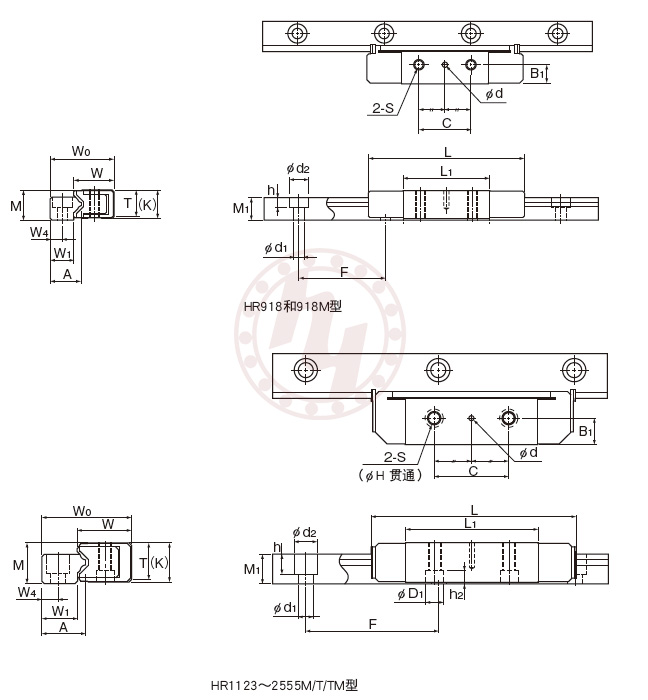

| 外形尺寸 | M | 8.5 | mm |
| W | 11.4 | mm | |
| W0 | 18 | mm | |
| L | 45 | mm | |
| 滑块尺寸 | B1 | 5.5 | mm |
| C | 15 | mm | |
| S | M3 | mm | |
| H | 0 | mm | |
| h2 | - | mm | |
| L1 | 25 | mm | |
| T | 7.5 | mm | |
| K | 8 | mm | |
| d | 1.5 | mm | |
| D1 | - | mm | |
| 导轨尺寸 | W1 | 6.7 | mm |
| W4 | 3.5 | mm | |
| A | 8.7 | mm | |
| M1 | 6.5 | mm | |
| F | 25 | mm | |
| d1xd2xh | 3x5.5x3 | mm | |
| Max | 300 | mm | |
| 基本额定载荷 | C | 1.57 | kN |
| C0 | 3.04 | kN | |
| 静态容许力矩 | Ma单 | 0.0229 | kN*m |
| Ma双 | 0.17 | kN*m | |
| Mb单 | 0.0229 | kN*m | |
| Mb双 | 0.17 | kN*m | |
| 重量 | 滑块 | 0.01 | kg |
| 导轨 | 0.3 | kg/m | |
 | |||
