HSR 10RM_HSR10RM
作者：THK导轨 发布时间：2017-07-18

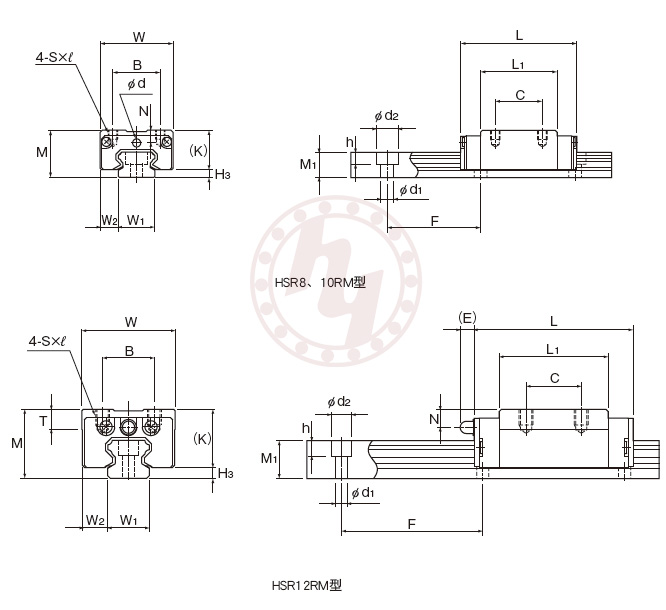

| 外形尺寸 | M | 13 | mm |
| W | 20 | mm | |
| L | 31 | mm | |
| 滑块尺寸 | B | 13 | mm |
| C | 12 | mm | |
| Sxl | M2.6x2.5 | mm | |
| L1 | 20.1 | mm | |
| T | - | mm | |
| K | 10.8 | mm | |
| N | 3.5 | mm | |
| E | - | mm | |
| d | 2.5 | mm | |
| 油嘴 | - | mm | |
| H3 | H3 | 2.2 | mm |
| 导轨尺寸 | W1 | 10 | mm |
| W2 | 5 | mm | |
| M1 | 7 | mm | |
| F | 25 | mm | |
| d1xd2xh | 3.5x6x3.3 | mm | |
| Max | (995) | mm | |
| 基本额定载荷 | C | 1.96 | kN |
| C0 | 3.82 | kN | |
| 静态容许力矩 | Ma单 | 0.0123 | kN*m |
| Ma双 | 0.0716 | kN*m | |
| Mb单 | 0.0123 | kN*m | |
| Mb双 | 0.0716 | kN*m | |
| Mc单 | 0.0162 | kN*m | |
| 重量 | 滑块 | 0.025 | kg |
| 导轨 | 0.45 | kg/m | |
 | |||
