RSR 3N_RSR3N
作者：THK导轨 发布时间：2017-07-18

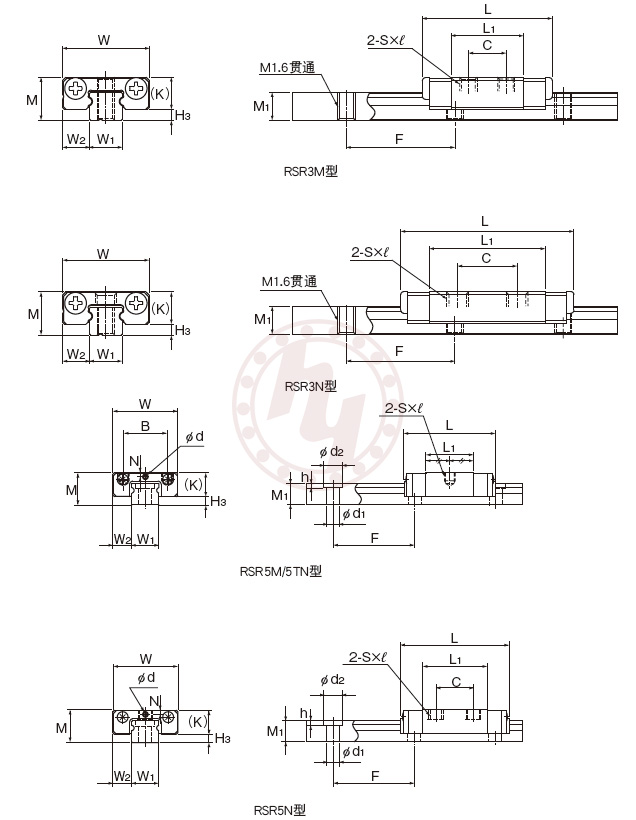

| 外形尺寸 | M | 4 | mm |
| W | 8 | mm | |
| L | 16 | mm | |
| 滑块尺寸 | B | - | mm |
| C | 5.5 | mm | |
| Sxl | M2x1.3 | mm | |
| L1 | 10.7 | mm | |
| T | - | mm | |
| K | 3 | mm | |
| N | - | mm | |
| E | - | mm | |
| d | - | mm | |
| 油嘴 | - | mm | |
| H3 | H3 | 1 | mm |
| 导轨尺寸 | W1 | 3 | mm |
| W2 | 2.5 | mm | |
| M1 | 2.6 | mm | |
| F | 10 | mm | |
| d1xd2xh | - | mm | |
| Max | 220 | mm | |
| 基本额定载荷 | C | 0.3 | kN |
| C0 | 0.44 | kN | |
| 静态容许力矩 | Ma单 | 0.726 | N*m |
| Ma双 | 4.33 | N*m | |
| Mb单 | 0.726 | N*m | |
| Mb双 | 4.33 | N*m | |
| Mc单 | 0.73 | N*m | |
| 重量 | 滑块 | 0.0016 | kg |
| 导轨 | 0.055 | kg/m | |
 | |||
