RSR 92M_RSR92M
作者：THK导轨 发布时间：2017-07-18

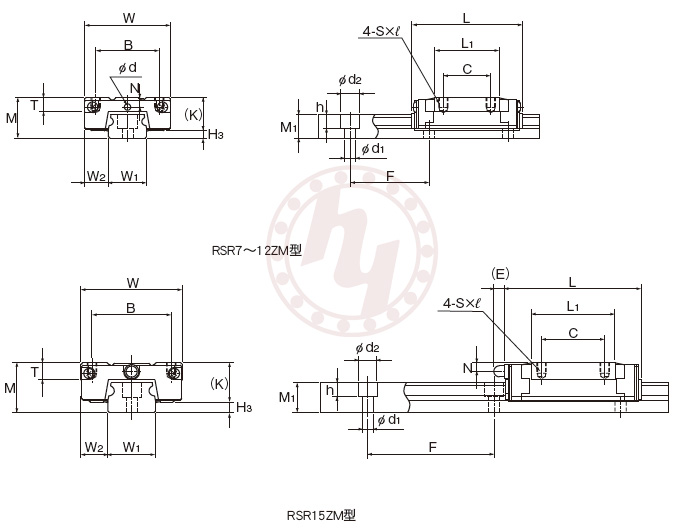

| 外形尺寸 | M | 10 | mm |
| W | 20 | mm | |
| L | 30.8 | mm | |
| 滑块尺寸 | B | 15 | mm |
| C | 10 | mm | |
| Sxl | M3x2.7 | mm | |
| L1 | 19.4 | mm | |
| T | 4.6 | mm | |
| K | 7.8 | mm | |
| N | 2.4 | mm | |
| E | - | mm | |
| d | 1.6 | mm | |
| 油嘴 | - | mm | |
| H3 | H3 | 2.2 | mm |
| 导轨尺寸 | W1 | 9 | mm |
| W2 | 5.5 | mm | |
| M1 | 5.5 | mm | |
| F | 20 | mm | |
| d1xd2xh | 3.5x6x3.3 | mm | |
| Max | 1240 | mm | |
| 基本额定载荷 | C | 1.47 | kN |
| C0 | 2.25 | kN | |
| 静态容许力矩 | Ma单 | 7.34 | N*m |
| Ma双 | 43 | N*m | |
| Mb单 | 7.34 | N*m | |
| Mb双 | 43 | N*m | |
| Mc单 | 10.4 | N*m | |
| 重量 | 滑块 | 0.014 | kg |
| 导轨 | 0.32 | kg/m | |
 | |||
