SCR 30_SCR30
作者：THK导轨 发布时间：2017-07-18

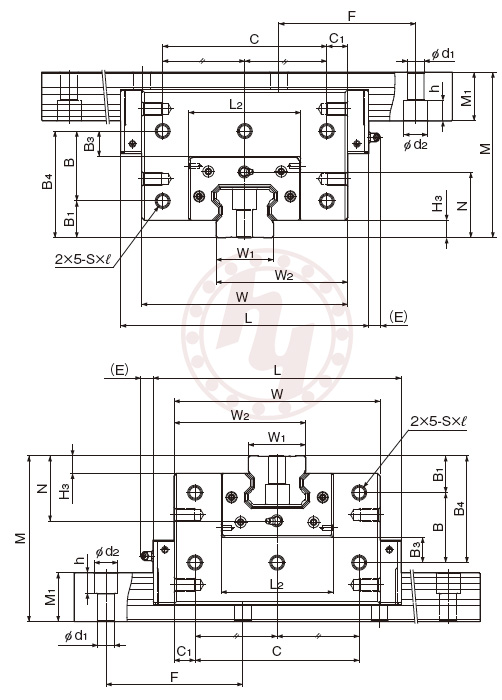

| 外形尺寸 | M | 82 | mm |
| W | 105 | mm | |
| L | 131 | mm | |
| 滑块尺寸 | B1 | 21 | mm |
| B3 | 12 | mm | |
| B4 | 53 | mm | |
| B | 32 | mm | |
| C | 76 | mm | |
| C1 | 14.5 | mm | |
| Sxl | M6x10 | mm | |
| L2 | 58 | mm | |
| N | 34 | mm | |
| E | 12 | mm | |
| 油嘴 | B-M6F | mm | |
| H3 | 7 | mm | |
| 导轨尺寸 | W1 | 28 | mm |
| W2 | 66.5 | mm | |
| M1 | 23 | mm | |
| F | 80 | mm | |
| d1xd2xh | 9x14x12 | mm | |
| 基本额定载荷 | C | 54.2 | KN |
| C0 | 88.8 | KN | |
| 静态容许力矩 | M0 | 1.15 | KN*m |
| Mb | 1.36 | KN*m | |
| 重量 | 滑块 | 4.6 | kg |
| 导轨 | 4.5 | kg/m | |
 | |||
