相关型号
SRG 100LC_SRG100LC
作者：THK导轨 发布时间：2017-07-18

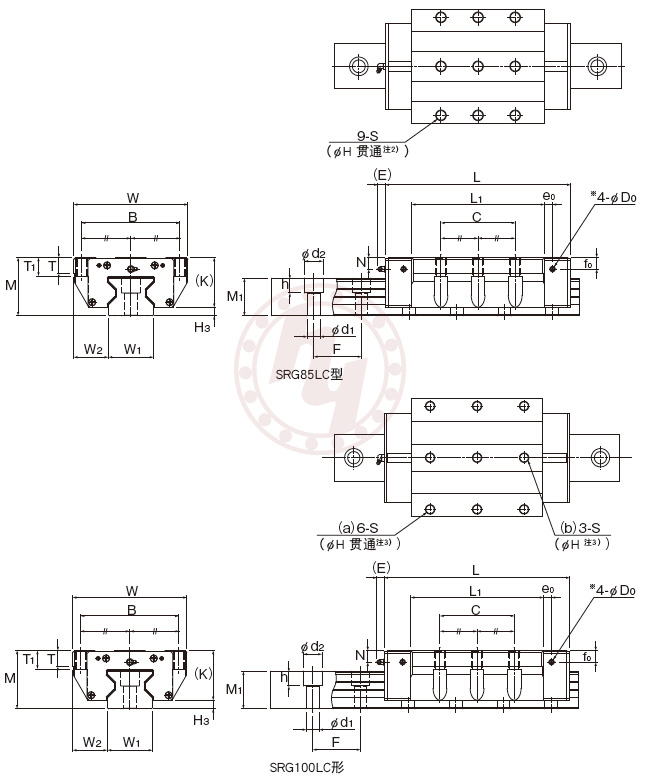

| 外形尺寸 | M | 120 | mm |
| W | 250 | mm | |
| L | 395 | mm | |
| 滑块尺寸 | B | 220 | mm |
| C | 400 | mm | |
| S | M20 | mm | |
| H | 17.8 | mm | |
| L1 | 280.2 | mm | |
| T | 35 | mm | |
| T1 | 38 | mm | |
| K | 104 | mm | |
| N | 23 | mm | |
| E | 16 | mm | |
| e0 | 15 | mm | |
| f0 | 23 | mm | |
| D0 | 8.2 | mm | |
| 油嘴 | B-PT1/8 | mm | |
| H3 | H3 | 16 | mm |
| 导轨尺寸 | W1 | 100 | mm |
| W2 | 75 | mm | |
| M1 | 77 | mm | |
| F | 105 | mm | |
| d1xd2xh | 26x39x32 | mm | |
| Max | 3000 | mm | |
| 基本额定载荷 | C | 601 | kN |
| C0 | 1170 | kN | |
| 静态容许力矩 | Ma单 | 60 | kN*m |
| Ma双 | 319 | kN*m | |
| Mb单 | 60 | kN*m | |
| Mb双 | 319 | kN*m | |
| Mc单 | 72.3 | kN*m | |
| 重量 | 滑块 | 37.6 | kg |
| 导轨 | 46.8 | kg/m | |
 | |||
