SRS 15WN_SRS15WN
作者：THK导轨 发布时间：2017-07-18

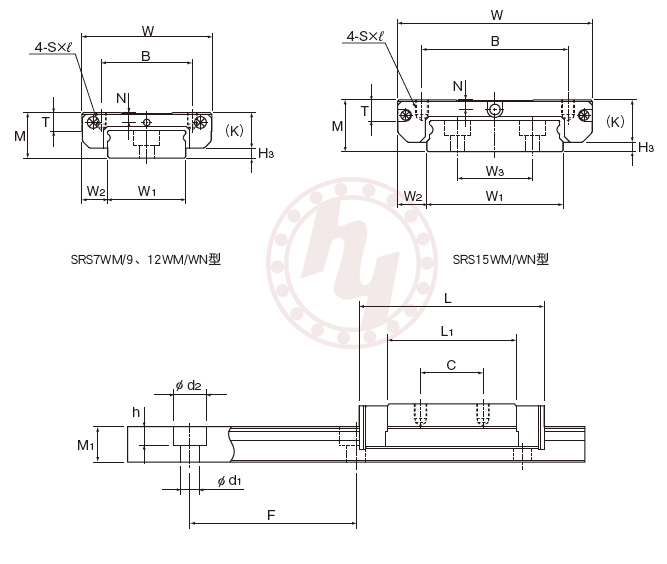

| 外形尺寸 | M | 16 | mm |
| W | 60 | mm | |
| L | 74.5 | mm | |
| 滑块尺寸 | B | 45 | mm |
| C | 35 | mm | |
| Sxl | M4x4.5 | mm | |
| L1 | 57.9 | mm | |
| T | 6.5 | mm | |
| K | 13.3 | mm | |
| N | 3 | mm | |
| H3 | 2.7 | mm | |
| 导轨尺寸 | W1 | 42 | mm |
| W2 | 9 | mm | |
| W3 | 23 | mm | |
| M1 | 9.5 | mm | |
| F | 40 | mm | |
| d1xd2xh | 4.5x8x4.5 | mm | |
| Max | 1800 | mm | |
| 基本额定载荷 | C | 12.4 | KN |
| C0 | 12.1 | KN | |
| 静态容许力矩 | Ma单 | 106 | N*m |
| Ma双 | 532 | N*m | |
| Mb单 | 106 | N*m | |
| Mb双 | 532 | N*m | |
| Mc单 | 250 | N*m | |
| 重量 | 滑块 | 0.201 | kg/个 |
| 导轨 | 2.87 | kg/m | |
 | |||
