CSR 20_CSR20
作者：THK导轨 发布时间：2017-07-18

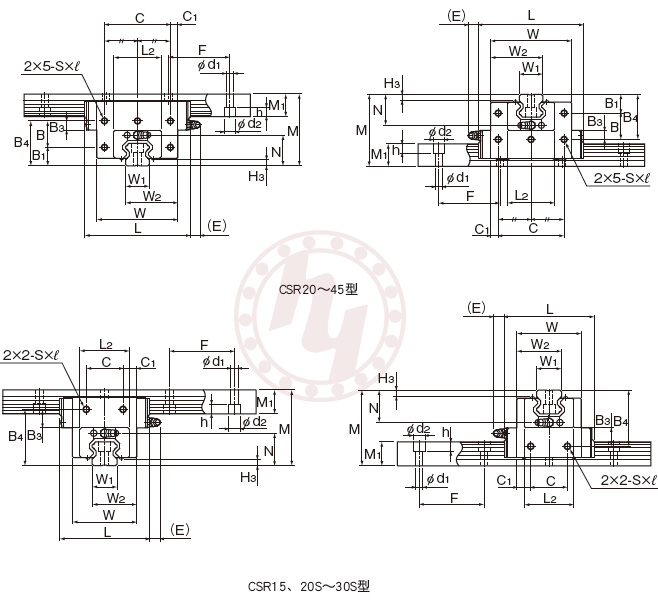

| 外形尺寸 | M | 57 | mm |
| W | 66.8 | mm | |
| L | 90 | mm | |
| 滑块尺寸 | B1 | 13 | mm |
| B3 | 7.8 | mm | |
| B4 | 37 | mm | |
| B | 24 | mm | |
| C | 56 | mm | |
| C1 | 5.4 | mm | |
| Sxl | M5x8 | mm | |
| L2 | 42 | mm | |
| N | 25 | mm | |
| E | 12 | mm | |
| 油嘴 | B-M6F | mm | |
| H3 | H3 | 4 | mm |
| 导轨尺寸 | W1 | 20 | mm |
| W2 | 35.4 | mm | |
| M1 | 18 | mm | |
| F | 60 | mm | |
| d1xd2xh | 6x9.5x8.5 | mm | |
| Max | 3000 | mm | |
| 基本额定载荷 | C | 21.3 | kN |
| C0 | 31.8 | kN | |
| 静态容许力矩 | M0 | 0.27 | kN*m |
| Mb | 0.323 | kN*m | |
| 重量 | 滑块 | 1.3 | kg |
| 导轨 | 2.3 | kg/m | |
 | |||
