NRS 25XR_NRS25XR
作者：THK导轨 发布时间：2017-07-18

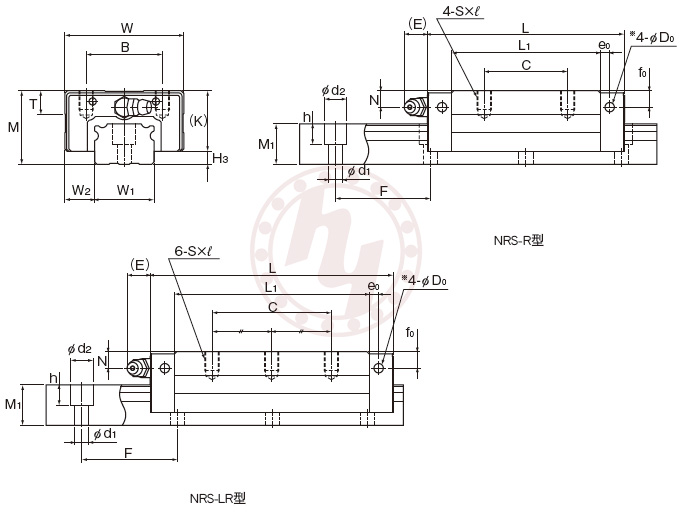

| 外形尺寸 | M | 31 | mm |
| W | 50 | mm | |
| L | 82.8 | mm | |
| 滑块尺寸 | B | 32 | mm |
| C | 35 | mm | |
| Sxl | M6x8 | mm | |
| L1 | 62.4 | mm | |
| T | 9.7 | mm | |
| K | 25.5 | mm | |
| N | 7 | mm | |
| E | 12 | mm | |
| 油嘴 | B-M6F | mm | |
| e0 | 4 | mm | |
| f0 | 7 | mm | |
| D0 | 3.9 | mm | |
| H3 | H3 | 5.5 | mm |
| 导轨尺寸 | W1 | 25 | mm |
| W2 | 12.5 | mm | |
| M1 | 17 | mm | |
| F | 40 | mm | |
| d1xd2xh | 6x9.5x8.5 | mm | |
| Max | 3000 | mm | |
| 基本额定载荷 | C | 25.9 | kN |
| C0 | 59.8 | kN | |
| 静态容许力矩 | Ma单 | 0.568 | kN*m |
| Ma双 | 2.84 | kN*m | |
| Mb单 | 0.568 | kN*m | |
| Mb双 | 2.84 | kN*m | |
| Mc单 | 0.633 | kN*m | |
| 重量 | 滑块 | 0.43 | kg |
| 导轨 | 3.1 | kg/m | |
 | |||
