NSR 70TBC_NSR70TBC
作者：THK导轨 发布时间：2017-07-18

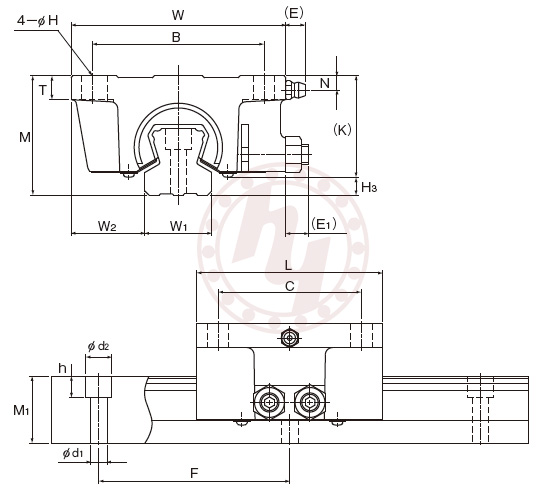

| 外形尺寸 | M | 105 | mm |
| W | 175 | mm | |
| L | 150 | mm | |
| 滑块尺寸 | B | 150 | mm |
| C | 110 | mm | |
| H | 14 | mm | |
| T | 18 | mm | |
| K | 95.5 | mm | |
| N | 10 | mm | |
| E | 15 | mm | |
| E1 | 16.5 | mm | |
| 油嘴 | A-PT1/8 | mm | |
| H3 | H3 | 9.5 | mm |
| 导轨尺寸 | W1 | 63 | mm |
| W2 | 56 | mm | |
| M1 | 62 | mm | |
| F | 150 | mm | |
| d1xd2xh | 14x20x17 | mm | |
| Max | 3000 | mm | |
| 基本额定载荷 | C | 90.8 | kN |
| C0 | 152 | kN | |
| 静态容许力矩 | Ma双 | 9.8 | KN*m |
| Mb双 | 4.9 | KN*m | |
| 重量 | 滑块 | 9.4 | kg |
| 导轨 | 27.6 | kg/m | |
 | |||
