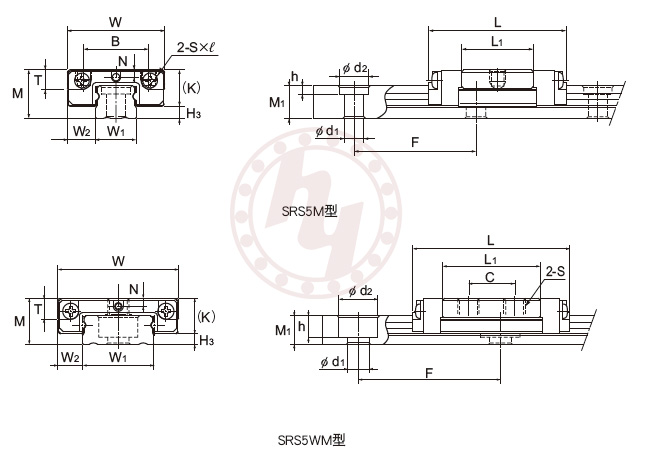

SRS 5WM_SRS5WM
作者：THK导轨 发布时间：2017-07-18
| 外形尺寸 | M | 6.5 | mm |
| W | 17 | mm | |
| L | 22.1 | mm | |
| 滑块尺寸 | B | - | mm |
| C | 6.5 | mm | |
| Sxl | M3贯通 | mm | |
| L1 | 13.7 | mm | |
| T | 2.7 | mm | |
| K | 5 | mm | |
| N | 1.1 | mm | |
| H3 | 1.5 | mm | |
| 导轨尺寸 | W1 | 10 | mm |
| W2 | 3.5 | mm | |
| M1 | 4 | mm | |
| F | 15 | mm | |
| d1xd2xh | 3x5.5x3 | mm | |
| Max | 220 | mm | |
| 基本额定载荷 | C | 584 | N |
| C0 | 703 | N | |
| 静态容许力矩 | Ma单 | 1.57 | N*m |
| Ma双 | 9.59 | N*m | |
| Mb单 | 1.83 | N*m | |
| Mb双 | 11.24 | N*m | |
| Mc单 | 3.58 | N*m | |
| 重量 | 滑块 | 0.005 | kg/个 |
| 导轨 | 0.27 | kg/m | |
 | |||
